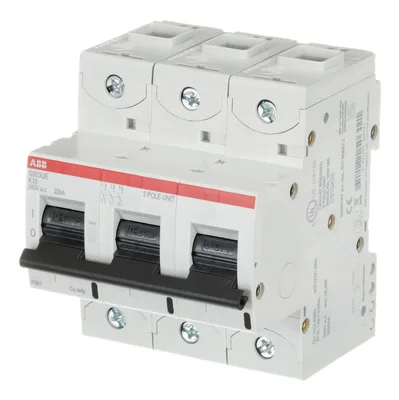

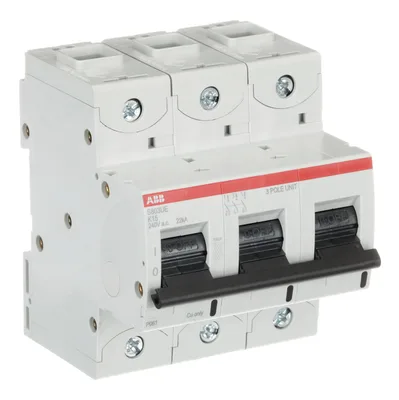

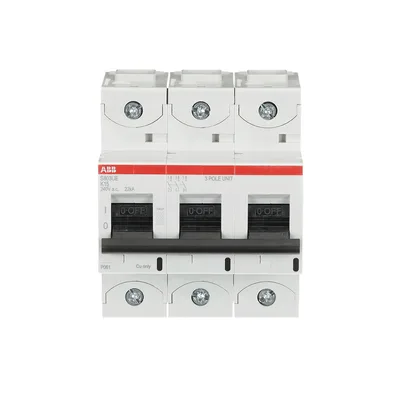

ABB 2CCG000133R0001
S803UE-K15 3Poles K Characteristic 30A 22kA 240VAC High Performance Circuit Breaker HPCB
Extended Product TypeS803UE-K15
Rated Operational Current (Ie)15 A
Contact Position IndicationON / OFF / TRIP
Number of Poles3P
Tightening Torque3.5 N·m
Actuator MarkingI / O
About This Product
S803UE-K15 3Poles K Characteristic 30A 22kA 240VAC High Performance Circuit Breaker HPCB
ABB 2CCG000133R0001
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeS803UE-K15
Rated Operational Current (Ie)15 A
Contact Position IndicationON / OFF / TRIP
Number of Poles3P
Tightening Torque3.5 N·m
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Connecting CapacityFlexible 0...50 mm², Rigid 0...70 mm²
Terminal TypeScrew Terminals
Rated Voltage (Ur)acc. to UL489 120 V AC
Rated Operational Voltage120 V AC
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Current (In)15 A
Rated Frequency (f)50 / 60 Hz
Power LossTotal 8.1 W, at Rated Operating Conditions per Pole 2.7 W
Overvoltage CategoryIV
Housing MaterialInsulation group I, RAL 7035
Interrupting Rating acc. to UL489(240 V AC) 22 kA
Ambient Air TemperatureOperation -25 ... 60 °C, Storage -40 ... 70 °C
Degree of Protectionacc. to IEC 60529 IP20
Pollution Degree3
Resistance to Vibrations1 mm 7 - 13.2 Hz, 0.7g with Load 100% x Ie 13.2 - 100 Hz
Width in Number of Modular Spacings4.5
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting PositionAny
StandardsUL489
