ABB 2CCG000131R0001

Click to zoom

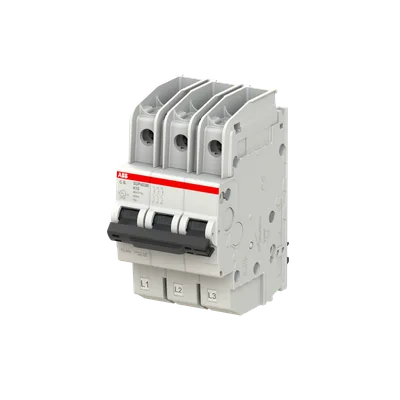

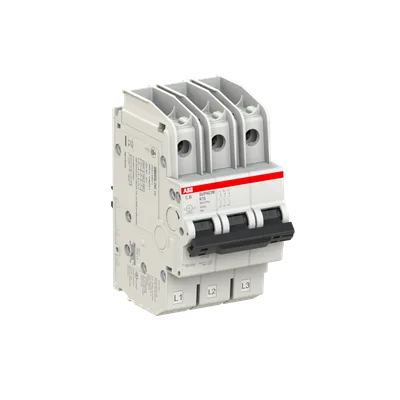

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CCG000131R0001

ABB Miniature circuit breaker SMISSLINE TP,configurations (1P,2P,3P), Tripping characteristic K, Rated breaking capacity acc. UL489 10kA

ABBMFR # 2CCG000131R0001SKU # YLSNW8GUOBPLQKP

Extended Product TypeSUP403M-K15

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance10000 cycle

Share

Have questions?Chat on WhatsApp

About This Product

ABB Miniature circuit breaker SMISSLINE TP,configurations (1P,2P,3P), Tripping characteristic K, Rated breaking capacity acc. UL489 10kA

ABB 2CCG000131R0001

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeSUP403M-K15

Sustainable Material Content in Packaging (wt. %)0 %, FSC Mix Cardboard - 2.62 %, FSC Mix Cardboard - 15.76 %, FSC Mix Cardboard - 43.57 %, FSC Mix Cardboard - 32 %, FSC Recycled Cardboard - 5.85 %

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V) 40 kA, (400 V) 40 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(240 V AC) 20 kA, (415 V AC) 20 kA, (480Y / 277 V AC) 10 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)50 %

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance10000 cycle

Number of Protected Poles1

Number of Poles1P

Tightening Torque2.8 N·m

Actuator MarkingI / O

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityFlexible 0.75 … 25 mm², Rigid 0.75 … 35 mm²

Rated Operational Voltageacc. to IEC 60898-1 480 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)15 A

Rated Frequency (f)50 ... 60 Hz

Power LossTotal 5.1 W

Overvoltage CategoryIII

Ambient Air TemperatureOperation -25 … 60 °C

Reference Ambient Air Temperature40 °C

Degree of ProtectionIP20

Pollution Degree2

Resistance to Vibrations1 mm 2 … 13.2 Hz

Width in Number of Modular Spacings54

Built-In Depth (t2)102 mm

Mounting PositionAny

Documents & CAD

Documents 7

CertificateProduct Environmental Profile SMISSLINE MCB SUP400PDF·384 KB·English

CertificateCB Test report SUP400PDF·2.0 MB·English

CertificateSUP400 SMISSLINE TP End of Life InstructionPDF·385 KB·English

CertificateUKCA declaration SUP400MPDF·45 KB·English

CertificateCertificate_UL489 standard SUP400PDF·153 KB·English

CertificateCertificate_UL489 standardPDF·814 KB·English

Instruction ManualSMISSLINE TP Mounting instruction SUP400PDF·781 KB·English

CAD Files 2

3D Model

STEP.step · 150.4 MB

2D Drawing

AutoCAD DXF.dxf · 2.1 MB
