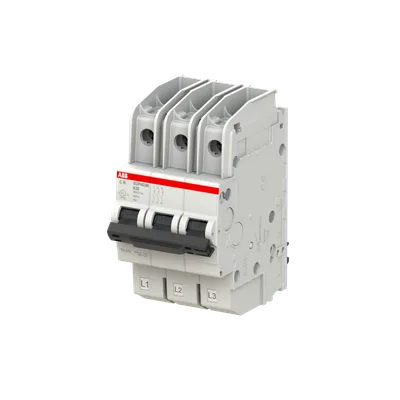

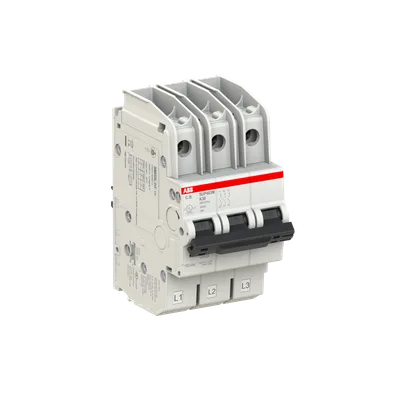

ABB 2CCG000129R0001

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CCG000129R0001

ABB Miniature circuit breaker SMISSLINE TP,configurations (1P,2P,3P), Tripping characteristic K, Rated breaking capacity acc. UL489 10kA

ABBMFR # 2CCG000129R0001SKU # YLSVAMYT2226A0
Extended Product TypeSUP403M-K30
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance10000 cycle
Share
Have questions?Chat on WhatsApp

About This Product

ABB Miniature circuit breaker SMISSLINE TP,configurations (1P,2P,3P), Tripping characteristic K, Rated breaking capacity acc. UL489 10kA

ABB 2CCG000129R0001

  • Genuine, certified ABB product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Extended Product TypeSUP403M-K30
Sustainable Material Content in Packaging (wt. %)0 %, FSC Mix Cardboard - 2.62 %, FSC Mix Cardboard - 15.76 %, FSC Mix Cardboard - 43.57 %, FSC Mix Cardboard - 32 %, FSC Recycled Cardboard - 5.85 %
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V) 30 kA, (400 V) 30 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(240 V AC) 15 kA, (415 V AC) 15 kA, (480Y / 277 V AC) 5 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)50 %
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance10000 cycle
Number of Protected Poles3
Number of Poles3P
Tightening Torque2.8 N·m
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
Connecting CapacityFlexible 0.75 … 25 mm², Rigid 0.75 … 35 mm²
Rated Operational Voltageacc. to IEC 60898-1 480 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)30 A
Rated Frequency (f)50 ... 60 Hz
Power LossTotal 8.1 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -25 … 60 °C
Reference Ambient Air Temperature40 °C
Degree of ProtectionIP20
Pollution Degree2
Resistance to Vibrations1 mm 2 … 13.2 Hz
Width in Number of Modular Spacings54
Built-In Depth (t2)102 mm
Mounting PositionAny

Documents & CAD

Documents 7

CertificateProduct Environmental Profile SMISSLINE MCB SUP400PDF·384 KB·English
CertificateCB Test report SUP400PDF·2.0 MB·English
CertificateSUP400 SMISSLINE TP End of Life InstructionPDF·385 KB·English
CertificateUKCA declaration SUP400MPDF·45 KB·English
CertificateCertificate_UL489 standard SUP400PDF·153 KB·English
CertificateCertificate_UL489 standardPDF·814 KB·English
Instruction ManualSMISSLINE TP Mounting instruction SUP400PDF·781 KB·English
