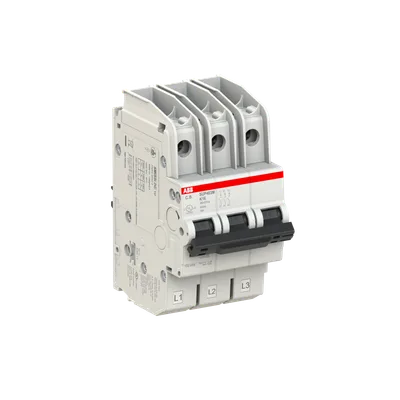

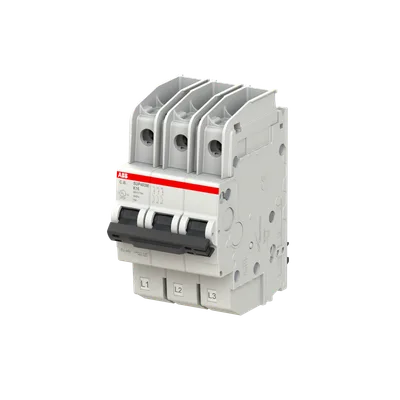

ABB 2CCG000126R0001
ABB Miniature circuit breaker SMISSLINE TP,configurations (1P,2P,3P), Tripping characteristic K, Rated breaking capacity acc. UL489 10kA
Extended Product TypeSUP403M-K16
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance10000 cycle
About This Product
ABB Miniature circuit breaker SMISSLINE TP,configurations (1P,2P,3P), Tripping characteristic K, Rated breaking capacity acc. UL489 10kA
ABB 2CCG000126R0001
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeSUP403M-K16
Sustainable Material Content in Packaging (wt. %)0 %, FSC Mix Cardboard - 2.62 %, FSC Mix Cardboard - 15.76 %, FSC Mix Cardboard - 43.57 %, FSC Mix Cardboard - 32 %, FSC Recycled Cardboard - 5.85 %
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V) 40 kA, (400 V) 40 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(240 V AC) 20 kA, (415 V AC) 20 kA, (480Y / 277 V AC) 10 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)50 %
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance10000 cycle
Number of Protected Poles3
Number of Poles3P
Tightening Torque2.8 N·m
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
Connecting CapacityFlexible 0.75 … 25 mm², Rigid 0.75 … 35 mm²
Rated Operational Voltageacc. to IEC 60898-1 480 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)16 A
Rated Frequency (f)50 ... 60 Hz
Power LossTotal 5.7 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -25 … 60 °C
Reference Ambient Air Temperature40 °C
Degree of ProtectionIP20
Pollution Degree2
Resistance to Vibrations1 mm 2 … 13.2 Hz
Width in Number of Modular Spacings54
Built-In Depth (t2)102 mm
Mounting PositionAny
