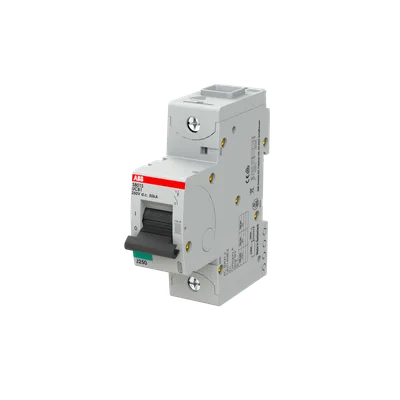

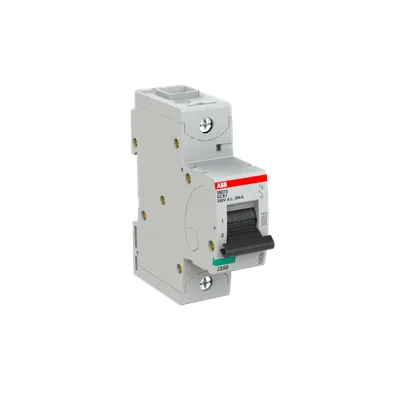

ABB 2CCF019970R0001
S801S-UCB1 1 Pole UC-B Characteristic 1A 50 kA 250 VDC High Performance Circuit Breaker HPCB
Extended Product TypeS801S-UCB1
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Number of Protected Poles1
Number of Poles1P
Tightening Torque3.5 N·m
About This Product
S801S-UCB1 1 Pole UC-B Characteristic 1A 50 kA 250 VDC High Performance Circuit Breaker HPCB
ABB 2CCF019970R0001
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeS801S-UCB1
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(250 V DC) 50 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(250 V DC) 50 kA
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Number of Protected Poles1
Number of Poles1P
Tightening Torque3.5 N·m
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²
Terminal TypeScrew Terminals
Rated Operational Voltageacc. to IEC 60947-2 250 V DC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1500 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Input Voltage TypeDC
Rated Current (In)1 A
Rated Frequency (f)0 Hz
Power LossTotal 1.6 W, at Rated Operating Conditions per Pole 1.6 W
Overvoltage CategoryIII
Housing MaterialInsulation group I, RAL 7035
Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C
Degree of ProtectionIP20
Pollution Degree2
Resistance to Vibrations1 mm 7 - 13.2 Hz, 0.7g with Load 100% x Ie 13.2 - 100 Hz
Width in Number of Modular Spacings1.5
Built-In Depth (t2)82.5 mm
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting PositionAny
StandardsIEC/EN 60947-2
