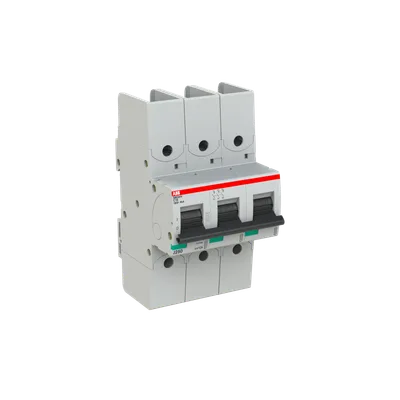

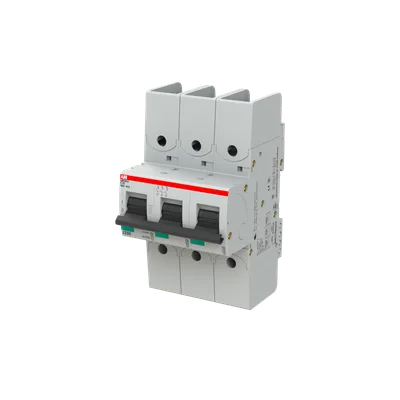

ABB 2CCF019650R0001
The S803HV-C10 is a 3-pole High Performance Circuit breaker with C-characteristic, with cage terminal, long separating plates and a rated current of 10 A. It is a current limiting device with a maximum breaking capacity of 4kA at 580/1000V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803HV-C10 complies with IEC/EN 60947-2, UL1077 and allows the use for industrial applications. It can be used worldwide. The extensive range of accessory makes the use of S803HV-C10 more comfortable. Due to the fast arc extinction of S803HV-C10 your application will be secured.
Extended Product TypeS803HV-C10
Contact Position IndicationON / OFF / TRIP
Number of Protected Poles3
Number of Poles3P
Tightening Torque3.5 N·m
Release TypeC
About This Product
The S803HV-C10 is a 3-pole High Performance Circuit breaker with C-characteristic, with cage terminal, long separating plates and a rated current of 10 A. It is a current limiting device with a maximum breaking capacity of 4kA at 580/1000V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803HV-C10 complies with IEC/EN 60947-2, UL1077 and allows the use for industrial applications. It can be used worldwide. The extensive range of accessory makes the use of S803HV-C10 more comfortable. Due to the fast arc extinction of S803HV-C10 your application will be secured.
ABB 2CCF019650R0001
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeS803HV-C10
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(1000 V AC) 4 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V AC) 2.5 kA
Contact Position IndicationON / OFF / TRIP
Number of Protected Poles3
Number of Poles3P
Tightening Torque3.5 N·m
Release TypeC
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²
Terminal TypeScrew Terminals
Rated Operational Voltageacc. to IEC 60947-2 1000 V AC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Input Voltage TypeAC
Rated Current (In)10 A
Frequency (f)50...60 Hz
Rated Frequency (f)50/60 Hz
Power LossTotal 4.5 W, at Rated Operating Conditions per Pole 1.5 W
Overvoltage CategoryIII
Housing MaterialInsulation group I, RAL 7035
Maximum Operating Voltage UL/CSA600Y V AC
Interrupting Rating acc. to UL1077(600 V AC) 15 kA
Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C
Degree of ProtectionIP20
Pollution Degree2
Resistance to Vibrations1 mm 2 - 13.2 Hz, 0.7g with Load 100% x Ie 13.2 - 100 Hz
Resistance to Shock acc. to IEC 60068-2-275 g, 30 ms
Width in Number of Modular Spacings4.5
Built-In Depth (t2)82.5 mm
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting PositionAny
StandardsIEC/EN 60947-2, UL 1077
Documents & CAD
Documents 11
CAD Files 1
2D Drawing
