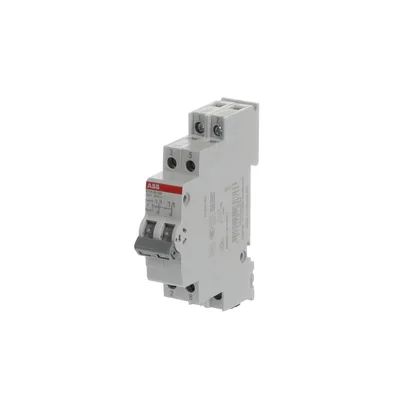

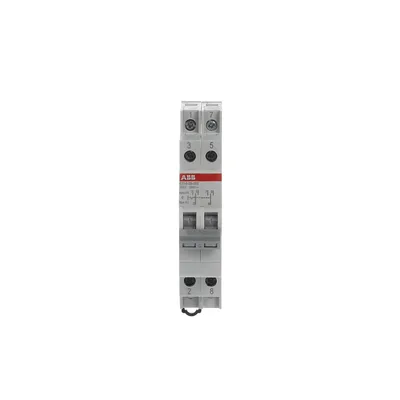

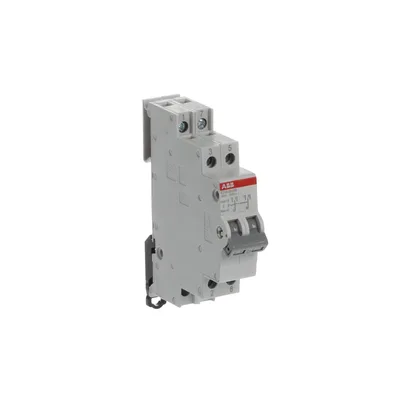

ABB 2CCA703031R0001

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CCA703031R0001

Group switches (I-0-II) according DIN EN 60669-1, VDE 0632 Part 1, Rated currents: 16/25 A, 250 VACPDC, Contacts: 1 CO/2 CO, Module width: 0,5/1

ABBMFR # 2CCA703031R0001SKU # YLSO2PKXCPLXQU

Extended Product TypeE214-25-202

Number of Poles2P

Tightening Torque1.2-1.5 N·m

Switch TypeDouble Interrupting Contacts

Material of ConductorCopper

Cover ColorGrey

Share

Have questions?Chat on WhatsApp

About This Product

Group switches (I-0-II) according DIN EN 60669-1, VDE 0632 Part 1, Rated currents: 16/25 A, 250 VACPDC, Contacts: 1 CO/2 CO, Module width: 0,5/1

ABB 2CCA703031R0001

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeE214-25-202

Rated Service Short-Circuit Breaking Capacity (Ics)3 kA

Number of Poles2P

Tightening Torque1.2-1.5 N·m

Switch TypeDouble Interrupting Contacts

Material of ConductorCopper

Cover ColorGrey

Connecting CapacitySolid 1x1…6 mm², Solid 2x2.5 mm², Flexible 1x0.75…2x2.5 mm²

Rated Voltage (Ur)Minimum 250 V

Rated Operational Voltageacc. to EN 250 V AC, acc. to UL 508 240 V AC

Input Voltage TypeAC

Rated Current (In)25 A

Rated Frequency (f)50/60 Hz

Power LossTotal 0.88 W

Number of Contacts CO2

Number of Auxiliary Contacts CO (SPDT)2

Control Element ColorGrey

Ambient Air TemperatureOperation -25...+55 °C, Storage -40...+70 °C

Degree of ProtectionIP20

Width in Number of Modular Spacings1

Built-In Depth (t2)68 mm

StandardsEN60669-1, VDE0632-1, IEC60068-2-2, IEC60068-2-1, IEC60068-2-38, UL508

Documents & CAD

Documents 22

CertificateProduct Declaration.PDF [EN] 6513-102-500PDF·24 KB·English

CertificateUL Certificate: E210PDF·498 KB·English

CertificateCCC certificate: E211 1NO; E213 1COPDF·972 KB·English

CertificateCB Zertifikat: E219PDF·1.2 MB·English

CertificateCB Zertifikat: E213 - E218PDF·1.2 MB·English

CertificateCB Zertifikat: E211; E211XPDF·1.2 MB·English

CertificateVDE Zertifikat: E219; E229PDF·1.0 MB·English

CertificateVDE Zertifikat: E211; E211XPDF·627 KB·English

CertificateCCC certificate: E213 2COPDF·873 KB·English

CertificateCCC certificate: E211 4NOPDF·884 KB·English

CertificateCCC certificate: E211 3NO; E211X 3NOPDF·935 KB·English

CertificateCCC certificate: E214PDF·894 KB·English

CertificateCCC certificate: E218, E211X 2NO/ E211 2NOPDF·1.0 MB·English

CertificateCCC certificate: E215PDF·887 KB·English

CertificateCCC certificate: E217PDF·1.1 MB·English

CertificateVDE Zertifikat: E213, E218PDF·272 KB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

Instruction ManualManual (.PDF) [EN] 6519 U; 6513 U-102; 6513-102-500; 6513 U-102-500; 6513-102PDF·436 KB·English

Instruction ManualManual (.PDF) [EN] 2112-101-500; 2112 U-101-500PDF·364 KB·English

Instruction ManualManual (.PDF) [EN] 6519 U; 6513 U-102; 6513-102-500; 6513 U-102-500; 6513-102PDF·431 KB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [EN] 2112-101-500 2112 U-101-500PDF·4.1 MB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [EN] 6513-102-500 6513 U-102-500PDF·594 KB·English

CAD Files 10

3D Model
