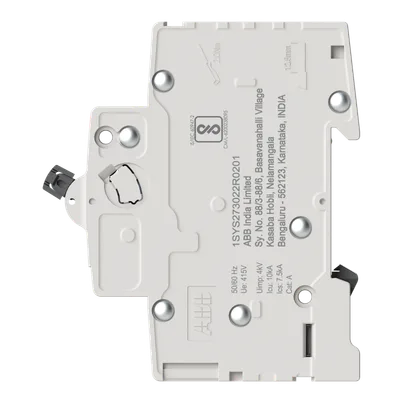

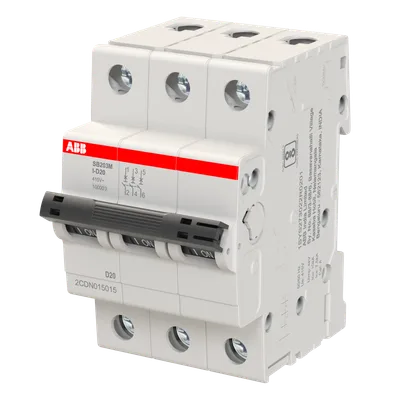

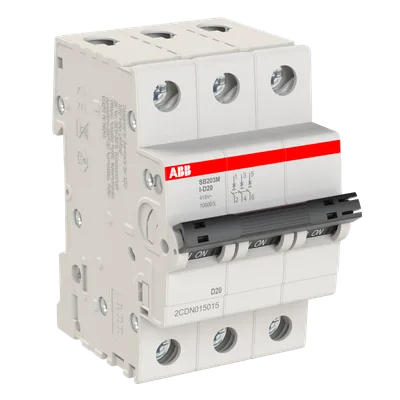

ABB 1SYS273022R0201
The MCB 10kA SB203M I-D20 provides overcurrent and short-cuicuit protection for industrial installations. This product is manufactured according to IEC Standards for the markets where it is required.
Extended Product TypeSB203M I-D20
Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV
Power Supply ConnectionArbitrary
Energy Limiting Class3
Electrical Endurance20000 cycle
Mechanical Endurance10000 cycle
About This Product
The MCB 10kA SB203M I-D20 provides overcurrent and short-cuicuit protection for industrial installations. This product is manufactured according to IEC Standards for the markets where it is required.
ABB 1SYS273022R0201
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeSB203M I-D20
Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(415 V AC) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(415 V AC) 7.5 kA
Power Supply ConnectionArbitrary
Energy Limiting Class3
Electrical Endurance20000 cycle
Mechanical Endurance10000 cycle
Number of Poles3P
Tightening Torque2 N·m
Actuator TypeToggle
Screw Terminal TypeCage Terminal
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
Connecting CapacityRigid Solid 25 / 25 mm², Rigid Stranded 25 / 25 mm², Flexible 25 / 25 mm², Busbar 10 mm²
Installation Sizeacc. to DIN 43880 1
Wire Stripping Length12.5 mm
Terminal TypeScrew Terminals
Rated Operational Voltage415 V AC
Operational VoltageMinimum 12 V AC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)4 kV, at Sea Level 6.2 kV, at 2000 m 5 kV
Rated Current (In)D20 A
Rated Frequency (f)162 / 60 Hz
Overvoltage CategoryIII
Housing MaterialInsulation Group II, RAL 7035
Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionIP20, Enclosure with Cover IP40
Pollution Degree2
Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Mounting on DIN Rail35 mm acc. to EN60715
Mounting Positionany
StandardsIS/IEC 60947
